Angle Template Tool X900 with 6 Arms & Single Pipe Template

Angle Template Tool X900 with 6 Arms & Single Pipe Template

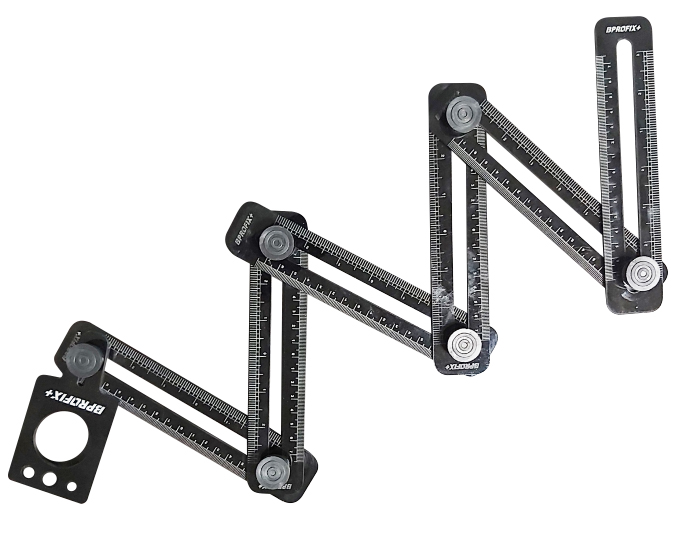

The Angle Template Tool X900 with 6 Arms & Single Pipe Template is a versatile measuring instrument designed for tracing irregular and complex geometric shapes, as well as accurately marking pipe installation positions. By loosening or tightening the wing nuts, this tool can be adjusted to various geometric configurations. It consists of six 15 cm rulers and a dedicated pipe template head.

In general, angle template tools are widely used in the construction industry and are categorized into different types. This tool is considered one of the most practical instruments for construction tasks. It features graduated rulers that allow for precise angle measurements, and it can also be used as a standard ruler.

Key Features of Angle Template Tool X900 with 6 Arms & Single Pipe Template

Simplifies tile installation and layout
Lightweight and portable
Adjustable and expandable design
Additional arms can be integrated if needed

Applications of Angle Template Tool X900 with 6 Arms & Single Pipe Template

Ideal for carpenters and cabinetmakers
Useful for plumbing professionals
Precision measuring with a minimum accuracy of 1 mm
A professional tool for tile and ceramic installers
Suitable for various interior applications

How to Use

Loosen or tighten the wing nuts to adjust the rulers to the desired shape.

Use the dedicated pipe template to trace accurate pipe locations.

Transfer the measurements onto tiles, ceramics, or other materials.

Cut the material precisely and install it in the intended location.

This tool can also be used as a linear copying ruler for multiple applications.

Usage in Tile Installation

The Angle Template Tool X900 with 6 Arms & Single Pipe Template is an essential tool for professional tilers, allowing them to accurately mark pipe cutouts for fixtures such as faucets and plumbing outlets. By removing the pipe template, it functions as a 6-arm angle ruler, enabling users to replicate and transfer various geometric shapes. If necessary, additional arms can be added or removed to accommodate larger-scale applications.

Technical Specifications

Six 15 cm graduated rulers (metric & imperial system)

One dedicated pipe template on one side

Wing nuts for easy tightening and adjustments (no wrench required)

Precision measurement accuracy: 1 mm minimum

Packaging

Vacuum-sealed single-unit pack
