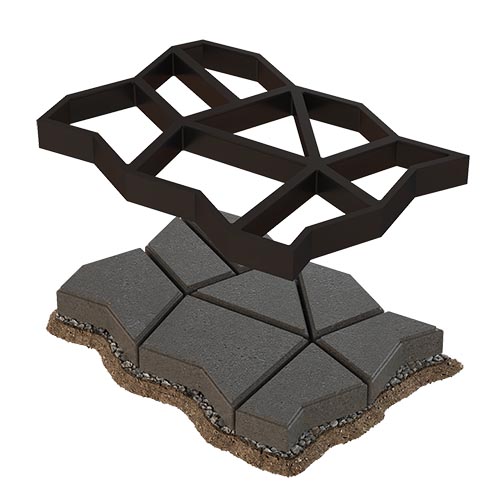

Concrete Paving Mold Model HEXA X3550

Concrete Paving Mold Model HEXA X3550

Concrete Paving Mold Model HEXA X3550 is a distinctive and specialized tool compared to other paving molds available worldwide. This mold, measuring 3550 cm with a height of 4.5 cm and a blade thickness of 6 mm, is made from durable ABS plastic. It allows for easy paving of various outdoor spaces such as villas, apartments, parks, urban green spaces, gardens, and more, without the need for any special skills or expertise. Using these molds for paving not only makes the process easier but also offers the possibility of creating colorful paving by using colored cement mixes. The geometric shape of this mold consists of irregular arcs, and it is designed to interlock in multiple directions, making it possible to expand the pattern. The outer dimensions of this model form a rectangular shape, 3550 cm, which can be extended both widthwise and lengthwise. Paving with the HEXA X3550 paving mold is the simplest and easiest method compared to other conventional methods like mosaic laying or concrete pouring.

Using the HEXA X3550 for paving public and urban spaces such as parks and green areas is the most cost-effective and best alternative to traditional methods like mosaic laying, concrete pouring, or the use of prefabricated concrete tiles. The final result will be much more aesthetically pleasing than all the aforementioned methods.

Special Features of HEXA X3550 Paving Mold

• Made from high-quality ABS polymer, the HEXA X3550 mold is highly resistant to various weather conditions.
• The plastic paving molds have a very high repetition coefficient, making them a durable tool for contractors if maintained properly.
• The mold is resistant to impact and physical forces, ensuring it does not easily break or crack.
• The ABS plastic used in manufacturing the mold provides excellent wear resistance against cement mortar and concrete.
• The mold’s surface prevents the cement or concrete mixture from sticking during pouring or mold removal.
• It is designed to be easy to clean with water and a brush without requiring any special acid-based cleaners.
• No need for leveling or special preparation of the surface before paving with the HEXA X3550 mold.
• The mold can be used on uneven or sloped surfaces to create concrete pathways and floors without additional surface preparation.
• Multiple molds can be used together to create a more aesthetically pleasing paving pattern.
• The spaces between the cells of the mold can be filled with grass or small pebbles to enhance the overall look.

How to Use HEXA X3550 for Paving

One of the most important considerations when paving with the HEXA X3550 mold is the physical condition of the cement mortar. The cement mix should have a strength of at least 300, with a preferred strength of 350. The slump of the mix should be between 4 and 6 for optimal results. If the mix has a higher slump, the working cycle and mold removal time will increase.

It is recommended to lubricate the molds with suitable oil or diesel before placement and cement pouring. Once the molds are arranged next to each other, wet them with fresh water to prevent the mortar from absorbing moisture before setting.

Fill the mold’s cells with cement mortar using a trowel, then level the surface. If using different colors of mortar, smaller trowels can help increase accuracy. After filling the cells, tap the surface gently to help the mortar settle and compress. Allow the mix to set for 2-3 hours, depending on the weather, before removing the molds.

Once the molds are removed, the paved surface should be kept moist for at least three days for curing. After 24-48 hours, the surface can be walked on, and after 7 days, it is ready for heavy traffic, including vehicle movement.

Required Number of HEXA X3550 Molds for Paving

The number of molds needed will depend on the size of the area and the time available. More molds will speed up the paving process and may require less time for the initial setting of the mortar. It is recommended to use at least two molds for areas under 50 square meters, and between 4 to 12 molds for larger areas.
