Concrete Paving Mold Model HEXA X4040

Concrete Paving Mold Model HEXA X4040

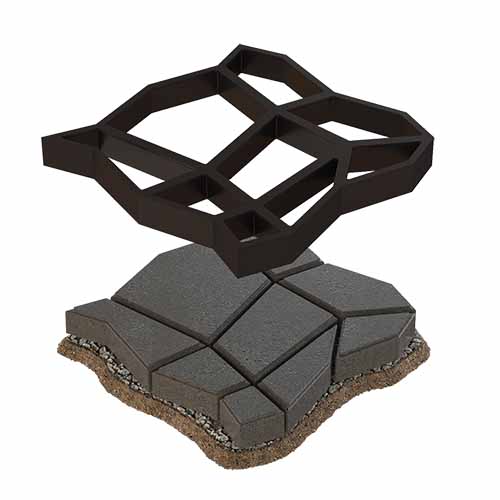

The HEXA X4040 concrete paving mold is a unique and special design compared to other available cement paving molds globally. This mold, measuring 40×40 cm with a height of 4.5 cm and a blade thickness of 6 mm, is made from durable ABS plastic. It enables easy and skill-free paving of various areas such as villa courtyards, apartment grounds, parks, and urban green spaces. Using these molds for paving not only simplifies the process but also allows the creation of a beautiful paved surface by utilizing colorful mortar. The mold’s geometric design, made from irregular lines, allows for easy arrangement of the molds in various directions to expand the design.

This paving mold is the easiest method for flooring compared to other traditional techniques such as mosaic laying or concrete pouring. It provides a much more aesthetically pleasing result than conventional methods. Using the HEXA X4040 plastic paving mold for public and urban areas such as parks and green spaces is the best, most affordable alternative to methods like mosaic work, concrete pouring, or using pre-made paving slabs.

Special Features of the HEXA X4040 Concrete Paving Mold

• Made from durable and high-density ABS polymer, this mold is highly resistant to various weather conditions.
• The mold is designed for high repeatability and, with proper care, can serve as a long-lasting tool for professionals.
• It offers excellent resistance to impact and external forces, making it highly durable and resistant to breaking or cracking.
• The ABS material ensures good abrasion resistance when in contact with mortar or concrete.
• Mortar and concrete will not stick to the mold during pouring or demolding.
• After initial curing, the mold remains intact, with no risk of cracking or chipping.
• You can use different colored mortars in each mold cell to enhance the beauty of the paved surface.
• Cleaning the mold is easy with just water and a brush, with no need for special acid-based cleaners.
• No need for surface preparation or leveling before using the mold for paving.
• The HEXA X4040 mold can create concrete and cement sidewalks on uneven or sloped surfaces without needing additional base preparation.
• Multiple models of the mold can be used simultaneously to improve the aesthetic appearance of the pavement.
• It is possible to plant grass, greenery, or add pebbles between the cells of the paving stones to further enhance the design.

How to Pave Using the HEXA X4040 Concrete Paving Mold

1. Mortar Specifications: Ensure the mortar’s mix ratio is above 300, with 350 being ideal. Mortar with a slump of 4-6 is recommended for better results. Excessively fluid mortar will extend the demolding time.
2. Preparation: Lubricate the mold with oil or diesel before placing it on the surface. Saturate the mold’s base with clean water to prevent the ground from absorbing too much water.
3. Pouring Mortar: Fill the cells of the mold with mortar using a trowel, and level the surface.
4. Using Multiple Colors: If using different colors, a smaller trowel can help control the pouring and prevent mixing.
5. Vibration: Tap the mold gently with your hand or a mallet to compact the mortar and ensure even distribution.
6. Curing: Allow the mortar to cure in the mold for 2-3 hours based on weather conditions. Avoid removing the mold too soon, as it may distort the shape.
7. Demolding: Remove the mold vertically to avoid damaging the surface. After demolding, cure the surface with water for 3 days.
8. Completion: After 24-48 hours, the surface will be walkable. After 7 days, it will be ready for heavy traffic, such as vehicles.

Number of Molds Needed

The number of HEXA X4040 molds required depends on the area to be paved and the available time. The more molds used, the faster the job will proceed, allowing for better initial curing. For smaller areas, 2 molds may suffice, but larger areas may require 16 or more molds.
