Concrete Paving Mold Model MOLD X140

Concrete Paving Mold Model MOLD X140

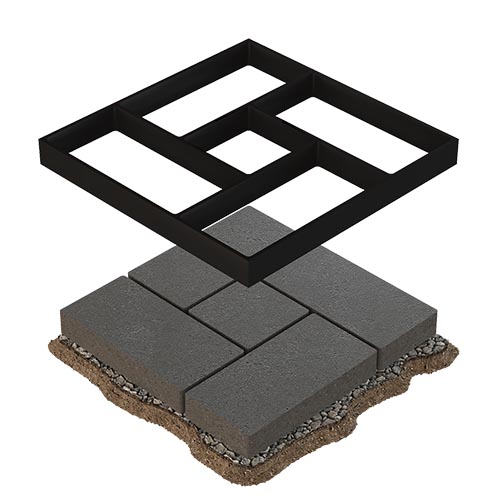

The MOLD X140 is a square-shaped paving mold with external square dimensions and internal linear reinforcements. It is designed with a central square and four surrounding rectangular sections. The mold is made of durable ABS plastic, with external dimensions of 4040 cm, a height of 4 cm, and blade thicknesses of 6 mm. It can be used to easily pave various outdoor spaces such as villa yards, parks, urban green spaces, garden walkways, and sidewalks. The use of plastic paving molds enables beautiful paving with colored mortar, allowing for the central square and surrounding rectangles to be filled with different colors, offering aesthetic versatility.

The mold has been specifically designed to be arranged in multiple configurations to create various geometric patterns. This allows the user to extend the design by arranging the molds in different directions. When used to pave outdoor areas, the MOLD X140 offers an easier and more effective method compared to traditional methods such as mosaic installation, concrete pouring, or using pre-made concrete pavers.

Special Advantages of MOLD X140 Paving Mold

1. Durability: Made from high-quality, weather-resistant ABS plastic, the mold is highly durable against different environmental conditions.
2. High Repeatability: The mold is designed for frequent use. With proper maintenance, it can serve as a permanent tool for paving projects.
3. Impact Resistance: The mold can withstand high impacts and pressure without breaking or cracking.
4. Wear Resistance: The ABS material ensures high abrasion resistance when in contact with mortar or concrete.
5. Ease of Cleaning: The mold is easy to clean with water and a brush, without the need for any special acidic cleaners.
6. No Need for Base Preparation: There is no need for advanced surface leveling or preparation before using the mold to create a paved surface.
7. Versatility: The mold allows the use of multiple colors of cement or concrete in different sections to create customized designs.
8. Ease of Use: Even on uneven or sloped surfaces, the MOLD X140 can be used without special preparation, simplifying installation in various terrains.

How to Use the MOLD X140 Paving Mold

1. Mortar Mix: For optimal results, ensure that the cement mixture has a strength of at least 300, with a recommended normal mix of 350. The mix should have a slump of 4 to 6 for proper setting.
2. Lubricating the Mold: Before pouring the mortar, it is recommended to lubricate the mold with oil or diesel to prevent sticking.
3. Filling the Mold: Pour the mortar into the cells of the mold using a trowel. If different colors are used, work carefully to keep them separate and avoid mixing.
4. Tapping the Mold: After filling the mold, gently tap the surface to ensure the mortar is well compacted.
5. Removing the Mold: Let the mortar cure for 2-3 hours before removing the mold. Take care to remove it vertically to avoid damaging the patterned concrete.

Curing and Maintenance

 After removing the mold, the newly paved surface should be cured with water for at least 3 days. After 24 to 48 hours, the surface is walkable, and after 7 days, it can bear heavy loads such as vehicle traffic. After finishing the paving, clean the molds with water and a soft brush, and store them for future use.

Required Quantity of Molds

 The number of molds needed depends on the size of the area to be paved. For small areas, 2 to 4 molds are sufficient, while larger areas may require 16 or more molds to increase the efficiency of the process.
