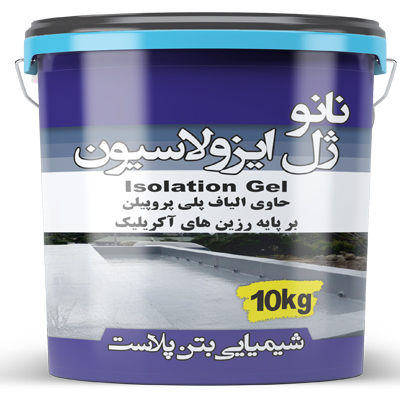

Fiber Reinforced Nano Insulation Gel

Fiber Reinforced Nano Insulation Gel

Powerful Waterproofing Insulator with Polypropylene Fibers

Acrylic Resin-Based

What is Fiber Reinforced Nano Insulation Gel?

Fiber Reinforced Nano Insulation Gel is a cutting-edge product designed for waterproofing and insulation applications, especially in construction. The significance of waterproofing and insulation has grown with advancements in technology, offering better performance and durability compared to traditional methods. This gel is a single-component, ready-to-use solution that is easily applied with a brush on concrete and cement surfaces. The addition of polypropylene fibers increases its durability compared to other similar waterproofing solutions. Developed using nanotechnology, the gel has a strong adhesive bond to cement surfaces, ensuring higher longevity when applied correctly. Available in various colors, this product eliminates permeability and provides complete waterproofing for all cement surfaces.

This product is a waterproofing compound produced using nanotechnology. Composed of acrylic styrene resins and polypropylene fibers, it offers high adhesion and resistance to cement surfaces, making it ideal for sealing and waterproofing various surfaces like bathrooms, kitchens, and more in buildings.

Mechanism of Action

Fiber Reinforced Nano Insulation Gel combines acrylic styrene resins, micronized fillers, and specific additives, reinforced with polypropylene fibers. The presence of acrylic styrene resins ensures high adhesion to cement surfaces, while the polypropylene fibers enhance its elasticity and stretchability.

Properties and Effects

• The best alternative to traditional methods like bitumen sheets
• High flexibility and elasticity
• Reinforced with polypropylene fibers
• Extremely high durability and longevity
• No cracking during application or after drying
• Excellent resistance to UV radiation and sunlight
• Does not form pollution in drinking water
• Allows the concrete to breathe
• Resistant to freeze-thaw cycles
• Waterproofs and prevents permeability of cement surfaces
• Bridges microcracks in concrete
• Excellent tensile strength and elongation
• Easy application without the need for specialized skills
• Resists moss, algae, and efflorescence
• High adhesion capacity
• Available in various colors

Applications

• Suitable for waterproofing stone, concrete, and brick reservoirs
• Ideal for negative pressure waterproofing after using crystalline penetrants
• Perfect for waterproofing bathrooms and showers
• Suitable for pools and fish farming ponds
• Repairs leaks and moisture damage in basements
• Can be used to waterproof cement pipes
• Insulates and waterproofs balconies and terraces
• Waterproofs surfaces in water and wastewater treatment plants
• Suitable for positive pressure waterproofing of uneven surfaces
• Ideal for waterproofing roof gardens

Physical and Chemical Specifications

Feature	Value
State	Viscous liquid
Color	Gray
Specific Gravity	1.35 g/cm³
Standard	ASTM D6083
Viscosity	10,000 Pa
Tensile Strength	48 MPa
pH	Approximately 8
Flexibility	330%

Standard Compliance

Fiber Reinforced Nano Insulation Gel complies with the ASTM D6038 standard.

Consumption Rate

The consumption rate depends on the surface’s porosity and irregularity. Typically, 1 kg of product covers 1 square meter in two layers.

How to Apply Fiber Reinforced Nano Insulation Gel

Before applying, ensure the surface is clean and free of contaminants like grease, dust, and dirt. If there are loose or flaky areas, remove them using sandblasting, water pressure, or brushes. If there are uneven or rough spots, they should be repaired with a suitable filler. A primer coat is recommended to enhance adhesion. Apply the first layer of gel using a brush in either a vertical or horizontal direction. For added durability, a fiberglass mesh layer can be added before the first layer dries. The second layer should be applied after 3-4 hours, following the opposite direction of the first layer.

Safety

• Wash tools thoroughly with water after use.
• Keep out of reach of children.
• Non-toxic, but consult a doctor if irritation occurs.
• Always wear gloves and a mask during application.

Storage

• Shelf life: 1 year in original packaging
• Store in a dry place, away from freezing temperatures, heat, and direct sunlight
• Optimal storage temperature: 10+ to 30+ degrees Celsius

Packaging

• 10 kg bucket
