Multi Angle Measuring Ruler X850 with 5 Arms and 2 Pipe Templates

Multi Angle Measuring Ruler X850 with 5 Arms and 2 Pipe Templates

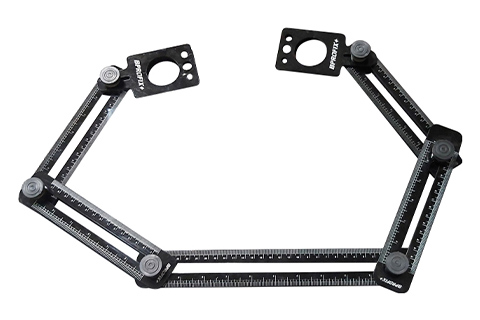

The Multi Angle Measuring Ruler X850, also known as the Double Pipe Template Ruler, consists of five arms: a 25 cm graduated ruler in the center and two 15 cm graduated rulers on either side. It also features two pipe templates on each side, allowing for precise and simultaneous copying of the positions of two pipes, which can then be transferred to the desired surface. This tool, with its five arms and two pipe templates, is highly practical and efficient for tile setters, plumbers, cabinet makers, and other construction professionals. The extra arms make it easier to copy and replicate measurements from hard-to-reach areas.

The X850 is ideal for larger surfaces and allows for simultaneous copying of two pipes, in addition to the general uses of a regular angle ruler. The parts of the tool are secured with six wing nuts, making it easy to adjust and position the ruler as needed. By removing the two pipe templates from the sides, the tool can function as a five-arm angle ruler, capable of copying and executing various geometric forms, such as diamonds, triangles, squares, and rectangles. This feature also makes it suitable for longitudinal and hard-to-reach measurements.

With the Multi Angle Measuring Ruler X850, you can easily modify the tool by adding or removing components using the wing nuts, allowing for a variety of configurations, including single pipe templates, double pipe templates, or no pipe templates at all.

Features of the Multi Angle Measuring Ruler X850

• Simplifies tile installation and execution.
• Lightweight design.
• Adjustable and collapsible for flexible use.
• Can have additional arms added to the system if needed.

Applications of the Multi Angle Measuring Ruler X850

• Suitable for use by carpenters, cabinet makers, and more.
• A professional tool for tile setters.
• Ideal for use by facility installation specialists.
• Perfect for internal applications.

Specifications

• Includes one 25 cm graduated ruler (metric and imperial systems).
• Includes four 15 cm graduated rulers (metric and imperial systems).
• Features two pipe templates for precise pipe hole copying.
• Includes six wing nuts for easy adjustments without the need for pliers or wrenches.
• High accuracy, with a minimum measurement precision of 1mm.

How to Use: Loosen and tighten the wing nuts to adjust the rulers into the desired position. Use the pipe templates to copy the exact locations of the pipes. After transferring the measurements to tiles or ceramics, mark and cut the shape, then place the piece in the desired location. This tool can also be used for linear copying.

Packaging

Vacuum-packed, 1 piece.
