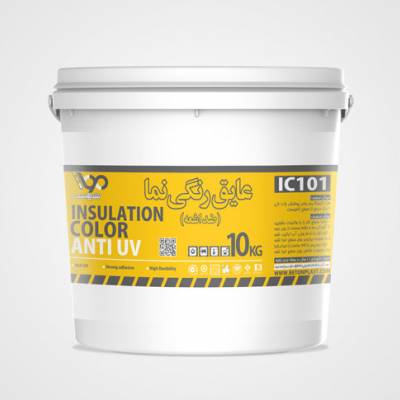

Nano Colored Insulator

Nano Colored Insulator

Sealant
IC101

High Elastomeric Waterproof Insulation for Roof and Facade

Simultaneous Coating and Insulation

Nano Colored Waterproof Insulator Description

What is Nano Colored Waterproof Insulator?

Nano colored waterproof insulator is a highly effective product that, in most cases, meets the client’s expectation of simultaneously waterproofing and coating a surface. This product is an efficient and unique solution that not only provides waterproofing for various surfaces but also enhances the appearance of the surface. It is the best alternative to bitumen (isogum) for roofing and a suitable option for facade painting. The colored waterproof insulation for facades is a water-based sealant made from acrylic and elastomeric resins, which, after drying, forms a flexible and fully waterproof coating on the surface.

This waterproof insulator can easily be applied on various surfaces such as concrete, cement, metal, bitumen or asphalted surfaces, mosaic, wood, etc., provided that the underlying surface is not greasy or covered in algae. It has excellent UV stability and can reduce up to 30% of energy loss in buildings when applied in light shades. With its high flexibility and elastomeric properties, it maintains its stretchability across a wide temperature range. This product does not pose any contamination risk to drinking and usable water and can easily be applied to cover water tanks, swimming pools, and fish farming tanks as a waterproof coating. It also helps reduce the transfer of heat and cold from the environment to the interior of the building.

In general, this advanced product is used for waterproofing and protecting surfaces from water penetration. It is produced using nanotechnology, which gives it unique properties. These insulators have high flexibility, preventing cracking and peeling, making them suitable for various surfaces.

Mechanism of Action of Nano Colored Waterproof Insulator

How does Nano Colored Waterproof Insulator work on a surface?

Nano waterproof insulation or nano coating insulator consists of acrylic resins, micronized fillers, special additives, and formulated colored pigments, which increase the elastomeric properties of the nano colored insulation by up to three times against stretching. This insulator is easily applied with a brush, roller, or sprayer to various surfaces, and it provides both painting and full waterproofing protection. Nano colored waterproof insulator can be produced and supplied in multiple colors according to the client’s preferences. Thanks to nanotechnology, this product solves environmental issues while providing waterproofing with a thin yet durable layer that prevents moisture, mold, and fungus growth.

Properties and Effects of Nano Colored Waterproof Insulator

What properties and effects does Nano Colored Waterproof Insulator have on a surface?

• Durability against UV rays without the need for any added solvents
• Excellent resistance to moisture and humidity
• Prevention of mold, mildew, and algae growth
• High resistance to various weather conditions
• Temperature tolerance from -35°C to +180°C
• Up to 30% energy savings in buildings
• Reduction of heat and cold transfer into buildings
• Easy application with brush, roller, or spray gun
• Long-lasting durability on surfaces
• Easy patching in case of localized damage
• Excellent flexibility and elastomeric properties
• High resistance to rain and environmental moisture
• No need to remove existing layers for application

Applications of Nano Colored Waterproof Insulator

What are the practical applications of Nano Colored Waterproof Insulator?

• Protection of concrete surfaces from soil-degrading ion penetration
• Suitable for covering and waterproofing mosque domes
• Ideal for metal and roofing surfaces with excellent adhesion
• The best alternative to bitumen for roof waterproofing
• Can be applied on bitumen surfaces for localized repairs
• Suitable for waterproofing various water structures
• A suitable replacement for bitumen in bathrooms, toilets, etc.
• Waterproofing and sealing of indoor garden beds and flower boxes
• Ideal for simultaneous painting and waterproofing of building facades
• Effective on asphalt roofs with leaks
• Waterproofing of various sloped and vertical surfaces

Physical and Chemical Properties Table of Nano Colored Waterproof Insulator

What are the physical and chemical properties of Nano Colored Waterproof Insulator?

Property	Value
State	Viscous liquid
Color	Customizable
Specific Gravity	1.33 g/cm³
Surface Drying Time	3 hours
Viscosity	10000 Pa
Impact Resistance	24 kg/cm²
Final Drying Time	7 days
Adhesion Resistance	14 MPa
Heat Resistance	150°C

Consumption Rate of Nano Colored Waterproof Insulator

How much Nano Colored Waterproof Insulator is needed per square meter?

The consumption of nano colored waterproof insulator varies depending on the porosity and unevenness of the surface. On average, about 700 grams to 1 kilogram of the product is required to cover one layer per square meter.

Application Method of Nano Colored Waterproof Insulator

How to apply Nano Colored Waterproof Insulator?

The most important step in applying nano colored waterproof insulator is ensuring the surface is clean. Clean the surface of all dirt, grease, and dust. If there are weak or peeling spots, remove them using high-pressure water or sandblasting. If there are pitted or porous areas, repair them with a repair mortar. It is recommended to apply an acrylic primer layer to enhance the adhesion of the nano colored waterproof insulator to the surface. Apply the first layer of the product, preferably in either a horizontal or vertical direction. To increase the longevity and reinforcement of the waterproof insulation, it is advised to place a fiberglass mesh on the first layer of insulation while it is still wet. Apply the second layer after 3 to 4 hours, when the first layer is still tacky, but in the opposite direction.

Safety of Nano Colored Waterproof Insulator

What safety conditions should be observed when using Nano Colored Waterproof Insulator?

• The tools used for applying this material should be thoroughly washed with water after use.
• Keep out of reach of children.
• This material is non-toxic; if it causes irritation, seek medical attention immediately.
• Wear gloves and a mask while working with the product.

Storage of Nano Colored Waterproof Insulator

What are the storage conditions for Nano Colored Waterproof Insulator?

• It should be stored for up to one year in its original packaging.
• The proper storage conditions are away from cold, frost, heat, and direct prolonged sunlight.
• The ideal storage temperature is between +10°C and +30°C.

Packaging of Nano Colored Waterproof Insulator

What is the packaging of Nano Colored Waterproof Insulator?

• 10 kg bucket
• 4 kg bucket
