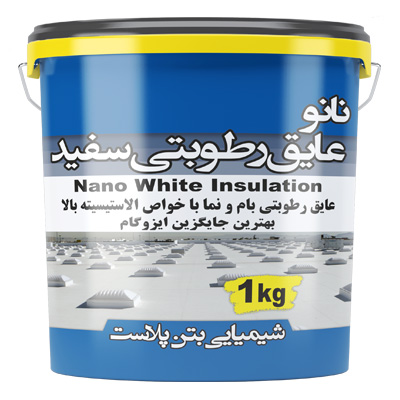

Nano White Insulator

Nano White Insulator

IW100-N
Waterproof Insulator for Roof and Facade
With high elasticity properties
The best alternative to bitumen

The use of modern waterproofing insulators has become quite notable due to their exceptional features compared to traditional insulators like bitumen, along with ease of application compared to traditional methods. The roof waterproofing insulator, generally known as the white roof insulator, is considered the best alternative to bitumen for roof coverings. Nano White Waterproof Insulator is a type of insulating and sealing coating made from elastomeric and polymeric materials based on water. Once dried, it creates an elastic and fully waterproof layer on the desired surface. This white insulator is suitable for all surfaces that require insulation, including metal, cement, mosaic, cracked bitumen and asphalt, wood, and all prepared surfaces for application, except for oily, algae-covered, and dusty surfaces. The white color of the waterproofing insulator enhances its durability against UV rays from the sun and helps maintain environmental balance in buildings under different weather conditions. Applying this white waterproofing insulator can prevent up to 45% of energy waste in buildings. The high flexibility, quick application, and hygienic properties of this product, both during and after application, have made it widely used. This type of waterproofing insulator is not limited to roofs but can also be used to cover facades and walls of buildings, providing special properties to the surface. The white roof insulator can be colored by adding pigments or water-based masterbatches, and it can be used as a color insulator.

In summary, this product is a water-based waterproofing insulator designed to prevent water and moisture infiltration. Its white color also helps reflect sunlight, preventing surface overheating. This nano insulation product provides unique advantages over traditional insulators, offering a highly effective solution for protecting structures against water and moisture.

Nano Waterproof Insulator Mechanism

The white roof insulator is composed of acrylic resins, special fillers, and unique additives, which enhance its elasticity properties up to three times under tensile stress. This insulator can be easily applied using a brush, roller, or sprayer, and because it closely resembles paint, any damage to the treated area can be easily repaired by applying more product with a brush. The formulation of the white roof insulator is similar to water-based acrylic paints, allowing it to be colored by adding pigments or water-based masterbatches.

Properties and Effects of Nano Waterproof Insulator

• Completely hygienic and non-toxic for drinking water
• Option to add pigments or masterbatches to produce a colored insulator
• High resistance to chemicals, environmental conditions, and industrial gases in the air
• Easy application without requiring specialized skills
• Breathable properties due to water-based composition
• Excellent adhesion to various surfaces
• Saves up to 45% of building energy loss
• High flexibility and elasticity
• Long-lasting quality and color retention
• High resistance to water and moisture
• Easy repair of damaged areas
• Much lighter than bitumen and tar
• Keeps roofs cooler in hot climates
• Prevents microorganism, mold, and mildew growth
• Non-flammable and will not catch fire in case of a blaze
• Does not crack or peel
• Easy to clean with water
• No need for reapplication of bitumen or asphalt on top of the insulator
• Very durable against UV rays

Applications of Nano Waterproof Insulator

• Suitable for covering and waterproofing mosque domes
• The best alternative to bitumen for roof waterproofing
• Can be applied on bitumen-covered surfaces for localized repairs
• Ideal for roofs with asphalt leaks
• Suitable for waterproofing bathrooms, toilets, etc.
• Can be used as a protective insulator for concrete against harmful soil ions
• Waterproofing and sealing garden boxes and flower boxes inside buildings
• Suitable for painting and waterproofing the facade of buildings
• Waterproofing sloped and vertical surfaces
• Waterproofing various water structures
• Can be applied on metal and sloped roofs with excellent adhesion

Physical and Chemical Specifications of White Insulator (Roof)

• State: Viscous liquid
• Color: White
• Specific gravity: 1.35 gr/cm³
• Standard: ASTM D6083
• Viscosity: 10,000
• Tensile strength: 43 MPa
• pH: Around 8
• Flexibility: 0.328

Consumption Rate of Nano Waterproof Insulator

The amount of white insulator required depends on the porosity and irregularities of the underlying surfaces. On average, 2 to 2.5 kg of white insulator is used per square meter.

Method of Use

• The most important step in applying the white waterproofing insulator is ensuring that the surface is clean and free from contaminants.
• Surfaces should not have any grease, dust, or dirt.
• If there are loose or flaking areas, clean them with water pressure or sandblasting.
• If there are any craters or depressions, repair the surface with a repair mortar.
• Apply an acrylic primer on the surface to enhance the adhesion of the insulator.
• When applying the first layer of white insulator, do so in either a vertical or horizontal direction on the surface.
• To increase the longevity or “reinforce” the insulator, apply a fiberglass mesh over the first layer before it dries.
• Apply the second layer 3 to 4 hours after the first, when the surface is still tacky.

Safety

• Keep out of reach of children.
• Wash tools used with the insulator thoroughly with water after use.
• Use gloves, a mask, and safety goggles during application.
• The material is non-toxic, but if it causes irritation, consult a doctor.

Storage

• Duration: One year in the original packaging
• Conditions: Store away from cold, frost, heat, and direct sunlight.
• Best storage temperature: 10+ to 30+ degrees Celsius

Packaging

• 10 kg and 4 kg buckets
