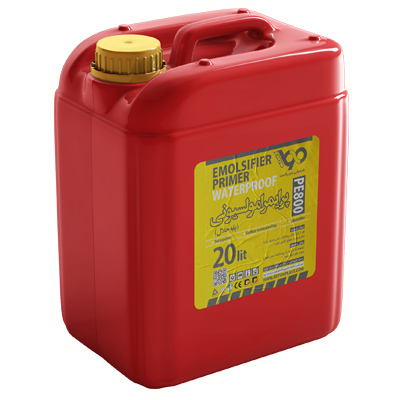

Solvent-Based Bituminous Emulsion Primer

Solvent-Based Bituminous Emulsion Primer

Waterproofing Bitumen Sealant

Emulsion Primer

Sealant

PE800

Powerful Bituminous Coating for Concrete Surfaces

Reinforced with Acrylic Resins

What is Solvent-Based Bituminous Emulsion Primer?

The protection of concrete sections that are in close proximity to soil is essential and unavoidable. The soil contains destructive chemical ions and sulfates that, without proper protection, may penetrate the structure and damage the concrete section. The best time to protect concrete from chemical agents is during the initial concrete application, as the concrete in its plastic state tends to lose water and may come into contact with areas that are water-absorbing. This can reduce the mixing water before it participates in the hydration process, causing shrinkage and volumetric contraction of the mix, which can lead to cracking or deep cracks in some cases. These cracks serve as the primary pathways for destructive chemical agents and sulfates to penetrate the concrete, resulting in rebar corrosion, and over time, severe structural damage. To address this problem and protect fresh concrete from environmental damage, as well as to prevent the loss of water from the surface, the Solvent-Based Bituminous Emulsion Primer is formulated with bitumen and modified resins.

This product is a single-component waterproofing solution that is diluted with hydrocarbon solvents and has good adhesion to steel, concrete, brick, asphalt, and other building materials. After drying, it is highly durable against moisture and water vapor penetration and provides a substantial insulation layer. When applied in two layers, it effectively waterproofs the surface. However, it is generally used as an undercoat for emulsified waterproofing applications. The product is known for its ease of application and speed.

Properties and Effects of Solvent-Based Bituminous Emulsion Primer

• Good chemical durability against weak ranges
• Non-flammable
• Resistant to corrosive agents for metal and concrete
• Non-toxic and non-polluting
• Resistant to microbial attacks
• Can be applied in cold conditions
• Protects against various types of corrosion
• Good chemical resistance to weak acids
• No petroleum solvents in the formulation
• Excellent flexibility
• The most cost-effective waterproofing and insulation method
• Excellent adhesion to metals and concrete
• High ease and speed of application

Applications of Solvent-Based Bituminous Emulsion Primer

• Suitable for the protection of buried or partially buried concrete
• Ideal for coating cement or metal pipes
• Can be used as cold asphalt when mixed with appropriate sand
• Suitable for waterproofing walls and roofs
• Suitable for waterproofing external surfaces of swimming pools and water reservoirs
• Ideal for insulating the external walls of silos for storing flour and wheat
• Creates a protective layer against vapor
• Suitable for waterproofing external surfaces of wastewater treatment plants

Physical and Chemical Specifications of Solvent-Based Bituminous Emulsion Primer

Property	Value
State	Liquid
Color	Dark brown
Specific Gravity	1 g/cm³
Solubility	In water
Surface Drying Time	3 hours

Consumption Rate of Solvent-Based Bituminous Emulsion Primer

The consumption rate depends on the type of surface and its porosity and hardness. Typically, 300 grams of bituminous emulsion primer covers 1 square meter of surface.

How to Apply Solvent-Based Bituminous Emulsion Primer

• Ensure the surface is free of dirt, dust, grease, or other contaminants.
• Clean the surface using high-pressure water (water jet), sandblasting, or compressed air if needed.
• Apply the emulsion primer using a spray, brush, or roller.
• Apply the first layer, ensuring the entire surface is covered.
• Apply the second layer 2 to 3 hours after the first layer has set, when it is still tacky.

Storage of Solvent-Based Bituminous Emulsion Primer

• Duration: 1 year in the original packaging
• Conditions: Keep away from freezing temperatures, extreme heat, and prolonged direct sunlight
• Optimal Storage Temperature: Between 10°C and 30°C

Packaging of Solvent-Based Bituminous Emulsion Primer

• 20 kg bucket
